CS1644

4-port DVI Dual View KVMP switch with USB 2.0 support and 2.1 channel surround sound audio
One dual-screen USB console controls four dual-screen computers and two additional USB devices
2-port USB 2.0 hub built in
Fully compliant with the USB 2.0 specification
All Features

MSRP:Quote Upon Request

MSRP:Quote Upon Request

Supports two high resolution Dual Link displays
The CS1644 USB 2.0 DVI Dual View KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4-port KVM switch with a 2-port USB 2.0 hub at the same time as providing dual-screen support for two DVI displays , making it ideal for graphic designers, banking and finance consultants, medical applications, and gamers.

Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.

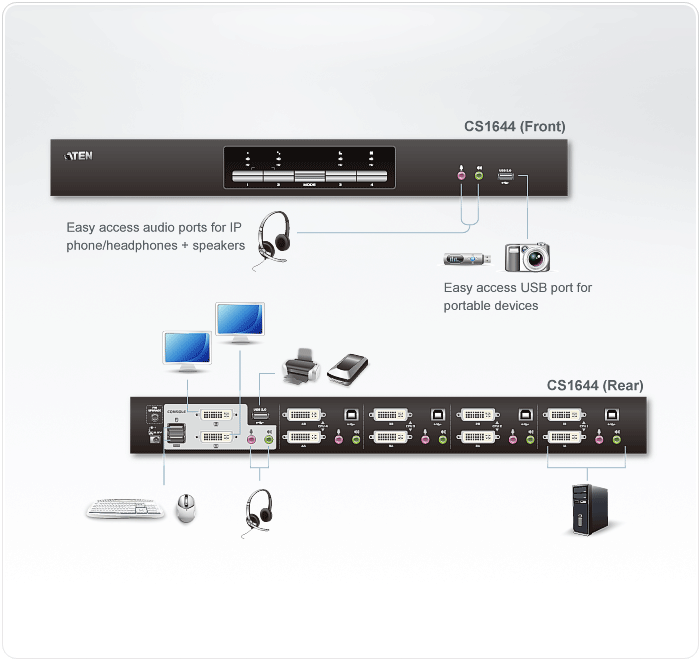

As a KVM switch, it allows users to access four computers with dual-screen support from a single USB keyboard, USB mouse, and dual-screen console. As a USB hub, it permits each computer to access any peripherals connected to the hub on a "one computer at a time" basis.

Package Contents

1x CS1644 USB 2.0 DVI Dual View KVMP™ Switch
4x 2L-7D02UD USB DVI-D Dual Link KVM Cable
1x LIN5-26WI-W11G (DVI-DL)
1x UC20KMZ-A-11 USB-to-PS/2 Converter
1x Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

4-port DVI Dual View KVMP switch with USB 2.0 support and 2.1 channel surround sound audio
One dual-screen USB console controls four dual-screen computers and two additional USB devices
2-port USB 2.0 hub built in
Fully compliant with the USB 2.0 specification
Full bass response provides a rich experience for 2.1 channel surround sound systems
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support - fully compliant with the DVI specifications; also HDCP compliant
Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
Supports widescreen resolutions
Computer selection via front panel pushbuttons and hotkeys
Multiplatform support – Windows, Linux, Mac, Sun
Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
Video DynaSync™ - stores the console monitors EDID (Extended Display Identification Data) to optimize display resolution
Complete keyboard emulation for error-free booting
Sun/Mac keyboard support and emulation
Auto Scan Mode for monitoring all computers
Firmware upgradable
