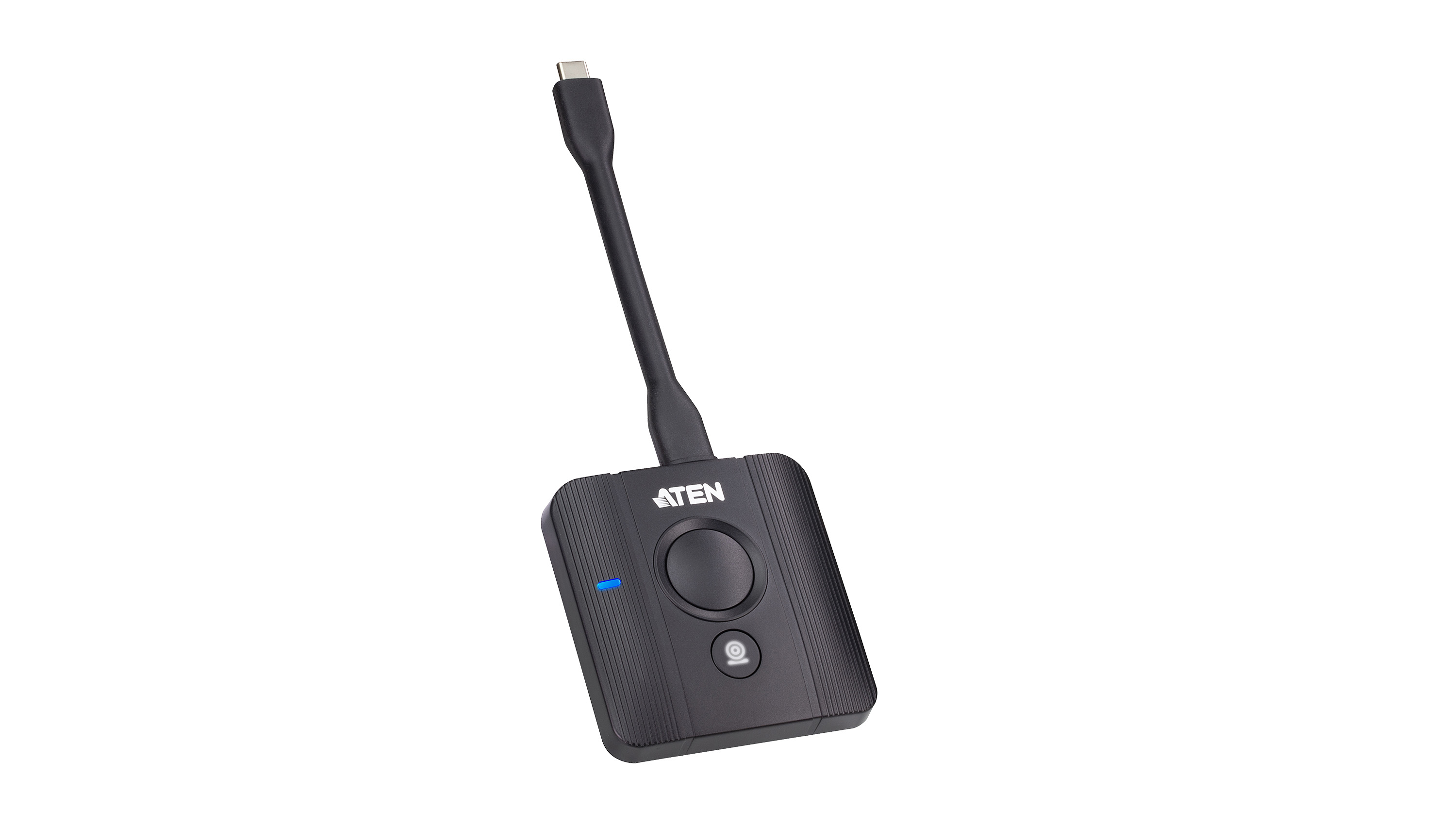

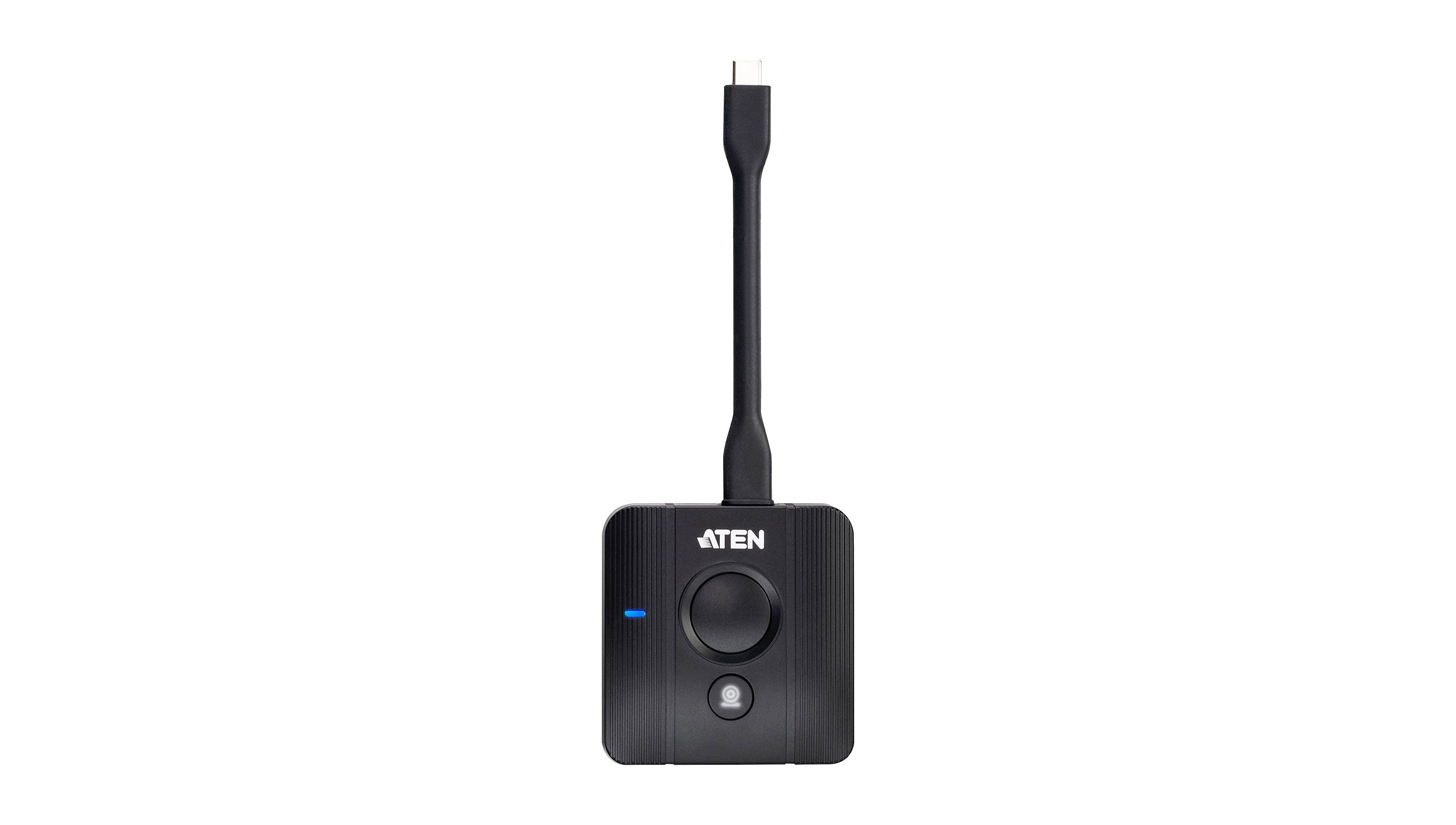

PresentON® Wireless Dongle for Conferences
NewVP201
Works with VP2020 / VP2021 4K Wireless Presentation Switch to enhance BYOD / BYOM experiences with just one click to facilitate wireless content sharing from users’ own USB-C laptops.
- Wireless A/V content casting and power supply via a single USB-C port with just one click
- USB Touchback – enables PC control via the in-room eWhiteboard or content interaction from users' USB devices
- Bring Your Own Device (BYOD) – share content from users' USB-C laptops / mobile devices wirelessly
- BYOM (Bring Your Own Meeting) –
– Host / Join a video conference using your preferred tool directly from your laptop
– Supports video conferencing tools like Microsoft Teams, Google Meet, and Zoom
– Supports in-room AV equipment ranging from cameras, microphones to speakers - All Features
The VP201 works in conjunction with the VP2020/VP2021 4K Wireless Presentation Switch to take BYOD & BYOM to the next level. With just one quick click, users can share screen content from their own USB-C laptops wirelessly, eliminating restrictive cables. USB touchback assures presenters efficient remote control over their PCs from the touchscreen/ interactive whiteboard in the room without having to go back and forth. Plus, due to the VP201’s universal, cross-platform compatibility, participants can interact directly with content from their USB conference devices, such as microphones, cameras, and speakers, and host meetings on all major operating systems using their preferred video conferencing tool like Microsoft Teams and Zoom and the native screen mirroring protocols like AirPlay®, Google Cast™, and Miracast. The VP201 does not just transform traditional meeting spaces into hybrid conference rooms, but also fosters collaboration among the organization and the remote team members.
*The information contained is the property of ATEN International Co. LTD or their respective owners. All rights reserved. AirPlay® is a trademark of Apple Inc., registered in the U.S. and other countries and regions. Google Cast™ is a trademark of Google LLC. Any other brand names or marks are used for compatibility description only and are trademarks or registered trademarks of their respective owners.
Package Contents
- 1 x VP201 PresentON® Wireless Dongle for Conferences
- Wireless A/V content casting and power supply via a single USB-C port with just one click
- USB touchback – enables PC control via the in-room eWhiteboard or content interaction from users' USB devices
- Bring Your Own Device (BYOD) – share content from users' USB-C laptops / mobile devices wirelessly
- Bring Your Own Meeting (BYOM) –
– Host / Join a video conference using your preferred tool directly from your laptop
– Supports video conferencing tools like Microsoft Teams, Google Meet, and Zoom
– Supports in-room AV equipment ranging from cameras, microphones to speakers - OS-independent – work on Windows / macOS / Linux
- Point-to-point wireless transmission via native mirroring when connecting to VP2020 / VP2021
- Plug-and-play with no need to install software / drivers

| Video Input | |
| Interfaces | 1 x USB Type-C |
| Video | |
| Max. Data Rate | Average ~ 12Mbps |
| Max. Resolution | Up to 1080p@60Hz |
| Wireless | |
| Authentication Protocol | WPA2-PSK in stand alone mode WPA2-PSK or IEEE 802.1X using the ATEN Present On solution in network integration mode |
| Wireless Transmission Protocol | IEEE 802.11 a/g/n/ac |
| Frequency Band | Switchable dual band 2.4GHz and 5GHz (DFS channels not supported) |
| Reach | Up to 10m (33ft) line of sight from Dongle to Station |
| Connectors | |
| Console Ports | 1 x USB Type C male |
| Power | 1 x USB Type C male |
| Pushbuttons | |
| Operating Mode Selection | 1 x Video Sharing ON/OFF 1 x USB Conference ON/OFF |
| LEDs | |
| LED Indicator | 1 x Video Sharing status LED 1 x Conference Status LED |
| Power Consumption | DC5V:1.37W |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -10 - 70°C |
| Humidity | 20 - 80% RH, Non-Condensing for Operation |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.09 kg ( 0.2 lb ) |
| Dimensions (L x W x H) | 6.70 x 6.90 x 1.50 cm (2.64 x 2.72 x 0.59 in.) |
| Carton Lot | 30 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
User Manual
| File Name | Release Date |
| vp200-vp201-user-manual-w.pdf (2.33 MB) | 2026-05-15 |
Quick Start Guide
vp201-installation-guide-w.pdf (5.55 MB)Firmware
| Description | Ver. | Release Date | File Name |
| Firmware Upgrade | v1.0.3 | 2026-06-05 | vp201-ota-v1.0.3.zip |
Note : For requests regarding firmware versions older than 3 years, please contact the Technical Support team.
Software & Drivers
| ОS | Description | Ver. | Release Date | File Name |
| Utility | ||||
| v1.0.2 | 2026-06-05 | ATEN-USB-C-Wireless-Presentation_Conference-Dongle-for-PresentON-Series-Utility-v1.0.2_s2_Signed.zip | ||
